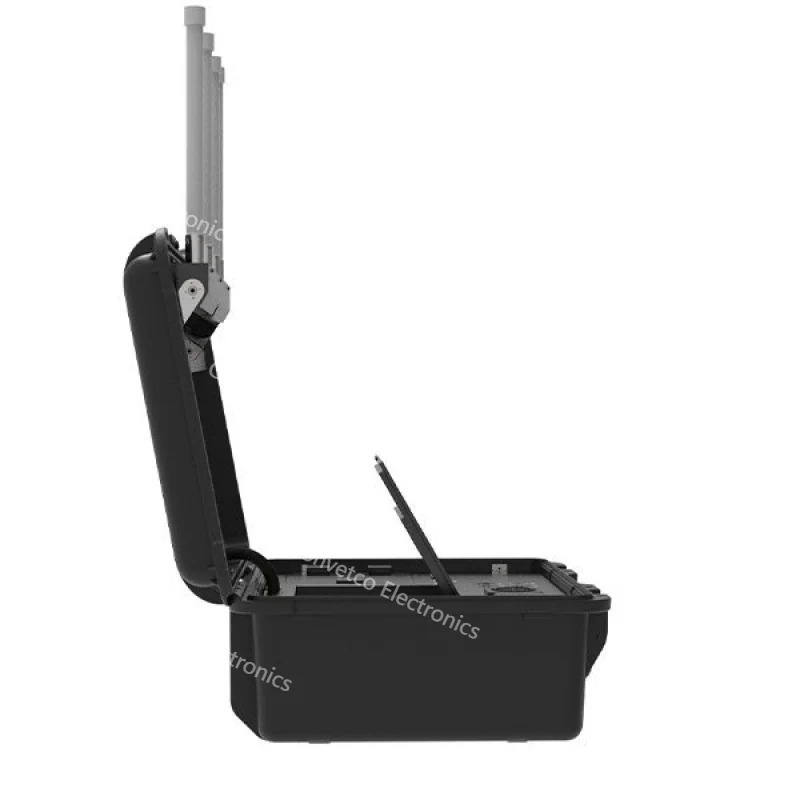

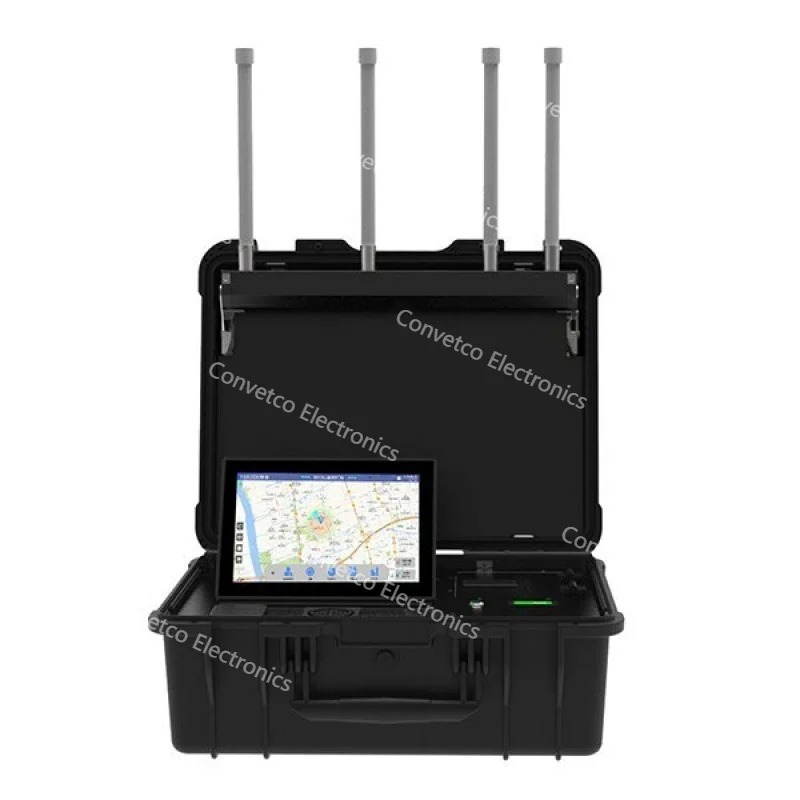

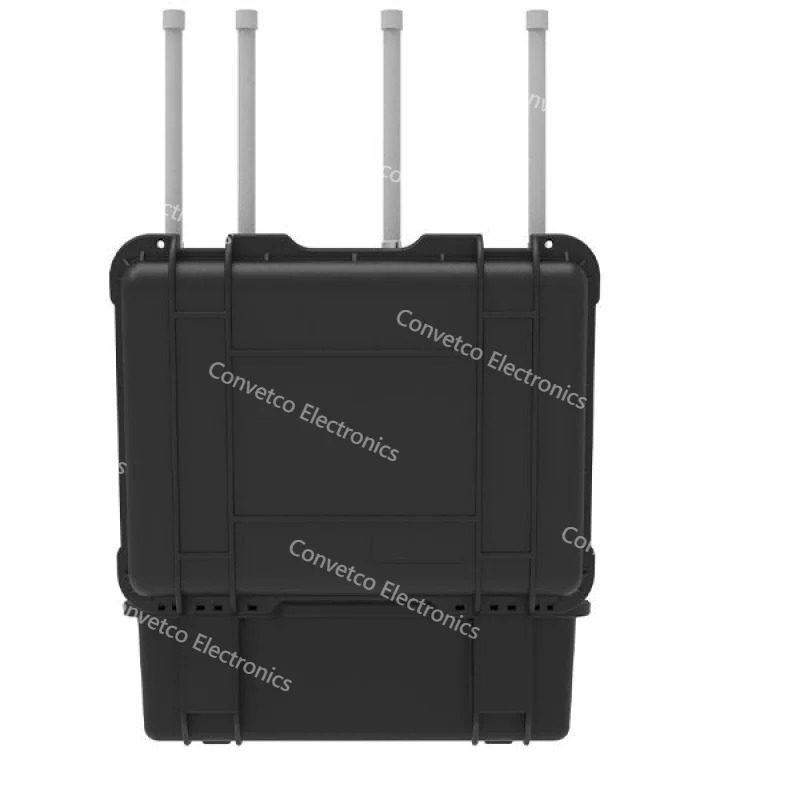

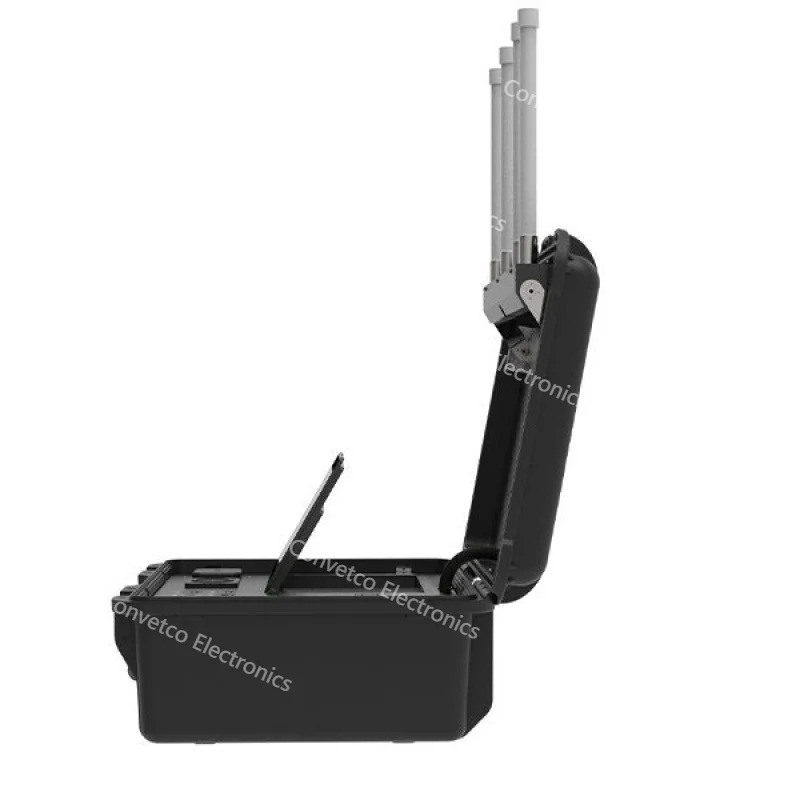

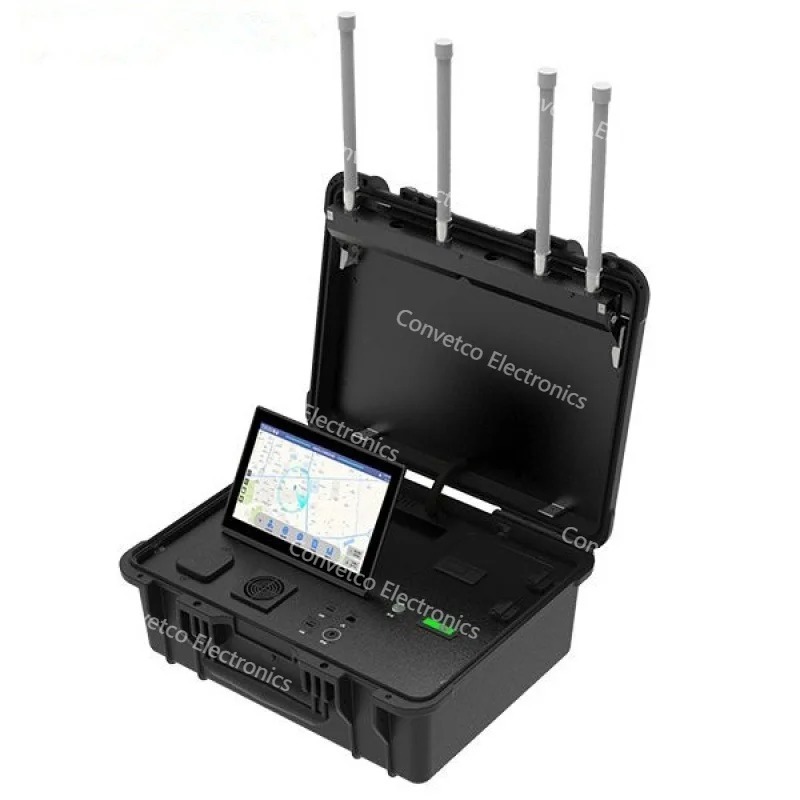

portable drone detector is a briefcase style drone detection device for drone monitoring.
CVTK-F3 works offline or online (optional). lt is easy to carry, deploy, and use via touch screen.
I. Overview
Convetco ElectronicsHandheld UAV listening devices are used as portable UAV monitoring platforms for UAV detection, identification and location tracking. Based on spectrum awareness and artificial intelligence, it identifies and classifies the UAV's flight control link and the map link, and can track the UAV to show its flight path and obtain the location of the pilot (remote control) for better low altitude safety
4.1 Performance indicators
|
No. |
Indicators |
Parameters |
Remarks |
|
1 |
Detection and identification of drones Types |
Most of the drones on the market, such as DJI, Autel, Fermi, Dahua, Zendik, HaoXiang, Udi and other homemade traversing machines and WiFi machines. |
|
|
2 |
Positionable drones Type |
DJI Mavic, Air, Mini, FPV, Avata, Series |
|
|
3 |
Detection frequency band |
900M,1.2G,2.4G,5.2G,5.8G |
|
|
4 |
Detection and positioning distance |
1~10km |
Influenced by environmental factors |
|
6 |
Detection height |
0m~1000m |
|
|
7 |
Number of targets that can be detected simultaneously |
≥10 sorties |
|
|
8 |
Simultaneous tracking of drone trajectories |
≥5 articles |
|
9 |
Positioning refresh time |
4~6s |
1km, influenced by environmental factors |
|
10 |
Azimuthal error |
≤1 5° (RMS) |
|
|
11 |
Positioning accuracy |
≤1m |
|
|
12 |
Detection success rate |
≥95% |
|
|
13 |
Roll-out deployment time |
≤90s |
The device is deployed to enter the working state |
|
14 |
Equipment withdrawal time |
≤30s |
|
|
15 |
Recognition response time |
≤3s |
