O、Product features
1、It adopts ultra-high frequency broadband seamless interference technology。
2、 Single switch technology controls the power output。
3、The effective power (channel power) is high, and the interference distance is long。
4、 Effective segmentation, only interferes with the drone control and video transmission frequency, and does not interfere with other frequencies。

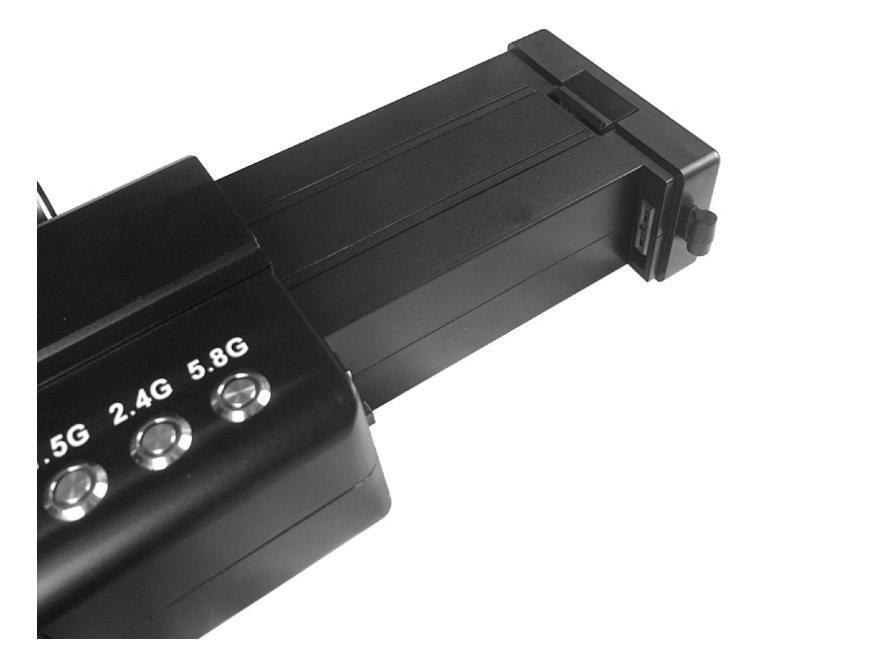

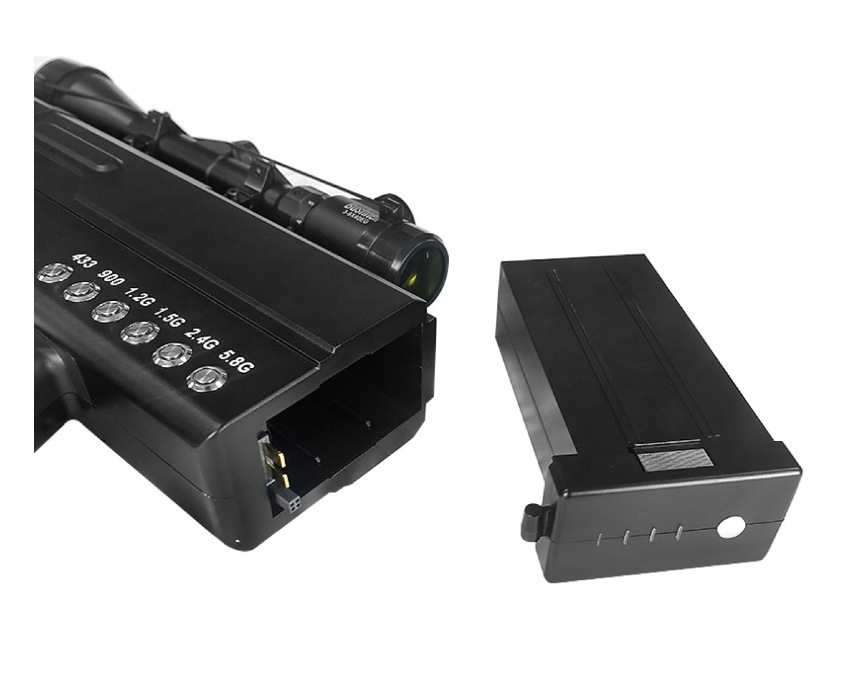

5、It adopts a built-in battery (push-pull design, the battery is removable), which lasts about 1 hour and charges for 4 hours。
6、Imported devices, slow start circuit design, can avoid the ignition phenomenon caused by mechanical switch, high integration, stable work。

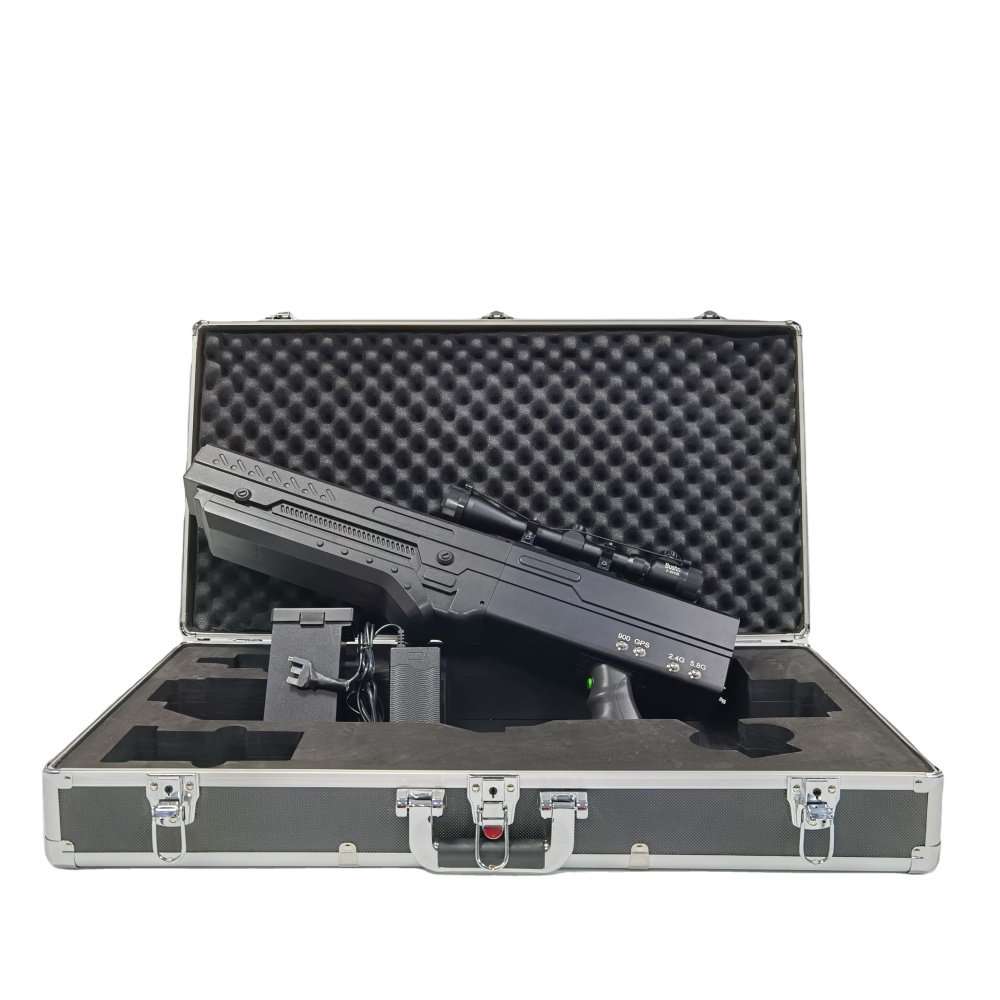

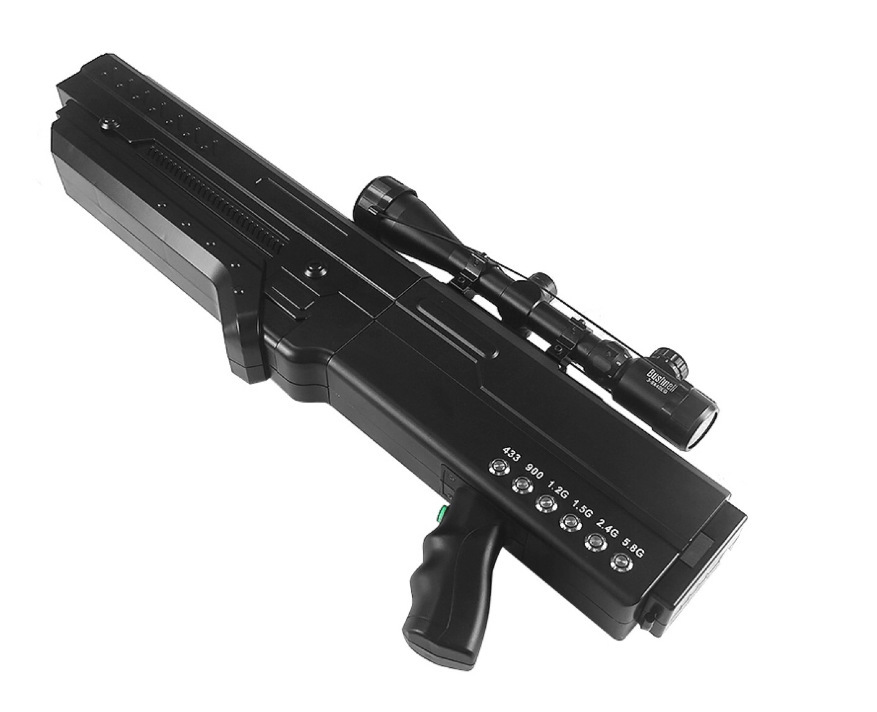

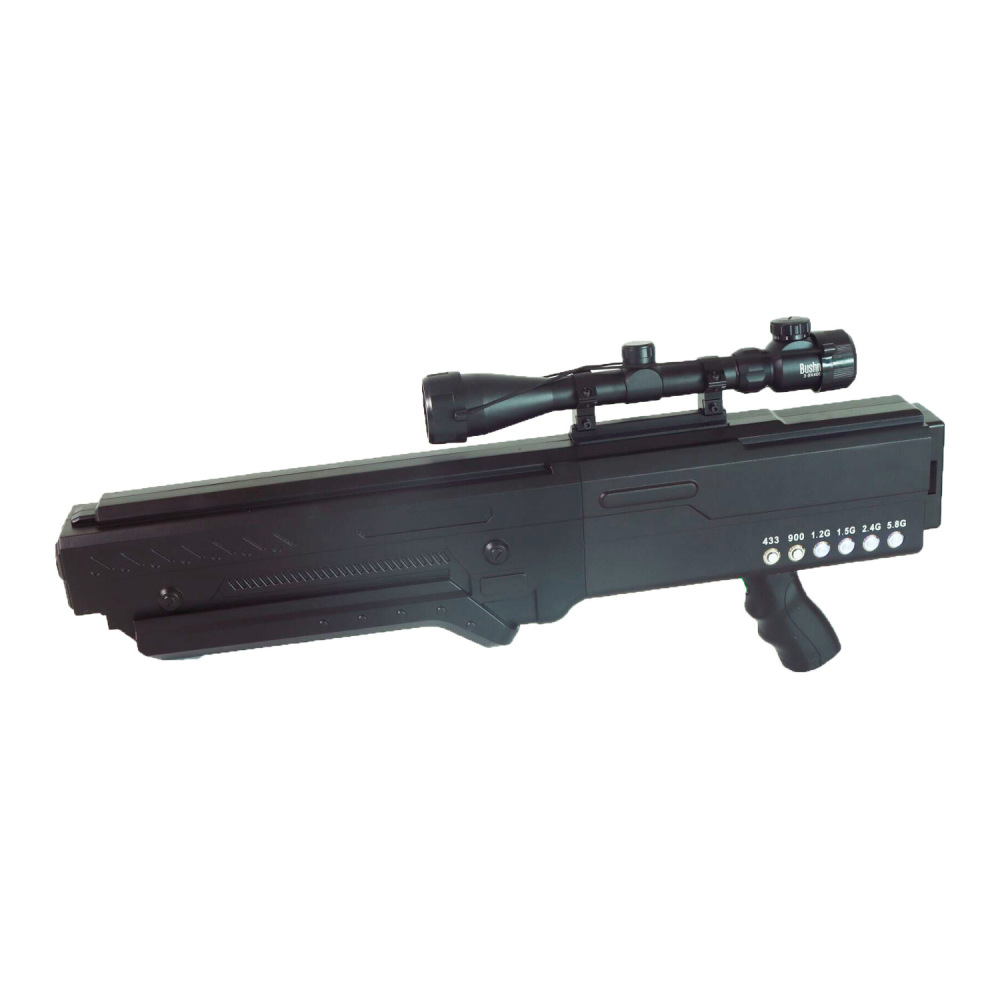

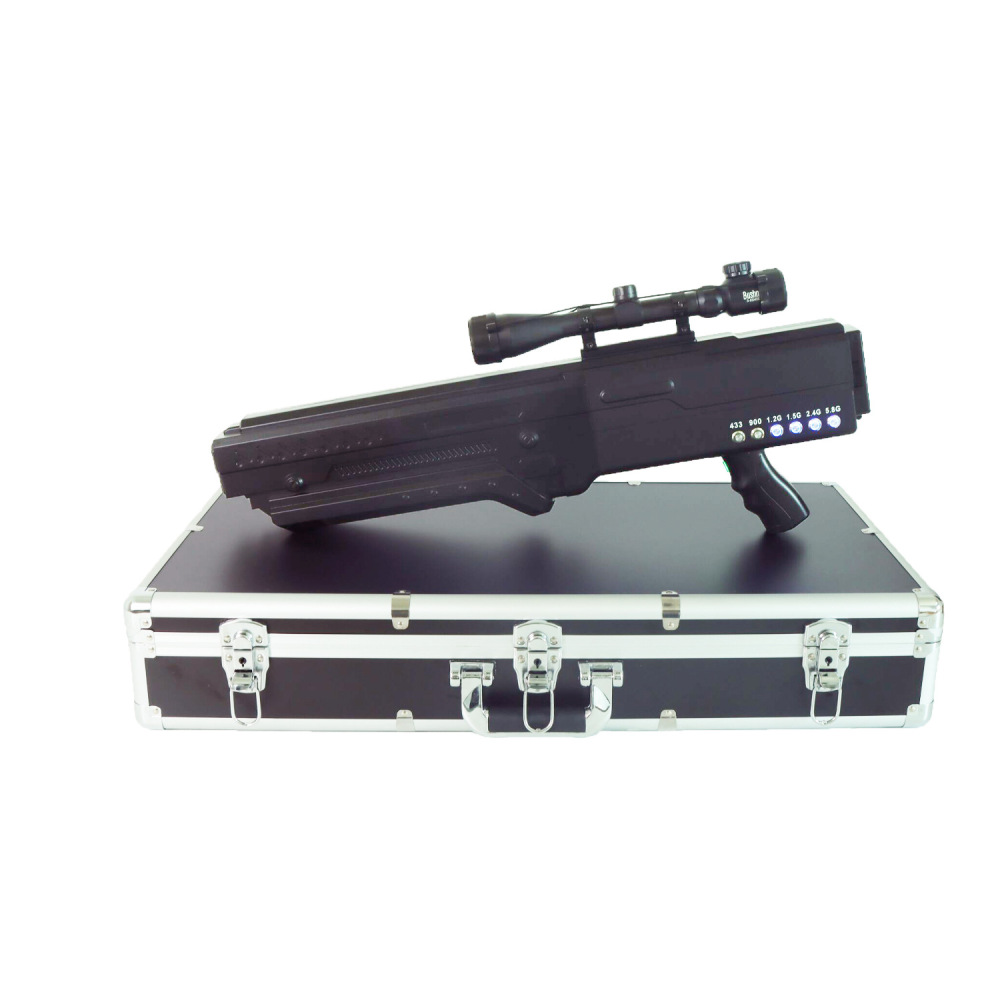

T、Real shot of the product
T、Device operating frequency
|
Output
|
Operating frequency
|
Average output power
|
Channel output power
|
|
1.5G
|
1550-1620MHz
|
44dBm
|
20dBm/30KHz(min)
|
|
2.4G
|
2400-2500MHz
|
44dBm
|
20dBm/30KHz(min)
|
|
5.8G
|
5720-5850MHz
|
43dBm
|
20dBm/30KHz(min)
|
|
900M
|
860-930MHz
|
44dBm
|
20dBm/30KHz(min)
|
|
1.2G
|
1180-1280MHz
|
40dBm
|
20dBm/30KHz(min)
|
|
433MHz
|
433MHz
|
40dBm
|
20dBm/30KHz(min)
|
|
power supply：AC220V-DC5V Electrical energy consumption：About 280W
|
|
Main unit weight： about 4.1Kg With packing weight:about 10.5Kg
|
|
Dimensions (W×H× L)：67·30·7.5cm Outer packaging size：77·40·14cm
|
|
Interference distance: 1000-2000M (the specific distance depends on the model of the drone and the distance between the drone and the pilot)
|
F、operate
1、When all switches are turned on, make a forced landing on the drone; Turn off GPS and turn on 433/1.2G/2.4G/5.8G/900M, the drone loses control, and the drone returns home; Turn off 2.4G/5.8G/900M, lose the positioning of the drone when turning on the GPS, and the drone remote control can be controlled at this time。
2、Specifically for visual UAV interference, the effective distance is that the pilot is about 100 meters away from the UAV, and the interference distance is 1000-2000 meters。
