O,Product features
1,It adopts ultra-high frequency broadband seamless interference technology.
2, Single switch technology controls the power output.
3,The effective power (channel power) is high, and the interference distance is long.
4, Effective segmentation, only interferes with the drone control and video transmission frequency, and does not interfere with other frequencies.
5,It adopts a built-in battery (push-pull design, the battery is removable), which lasts about 1 hour and charges for 4 hours.
6,Imported devices, slow start circuit design, can avoid the ignition phenomenon caused by mechanical switch, high integration, stable work.

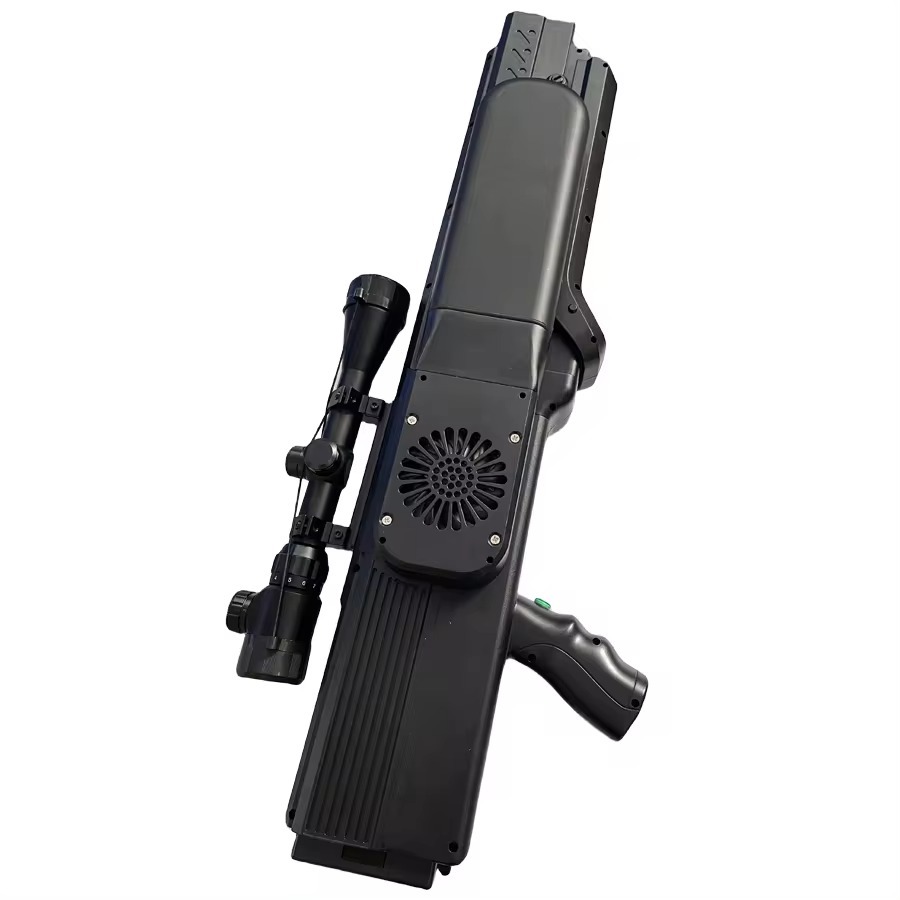

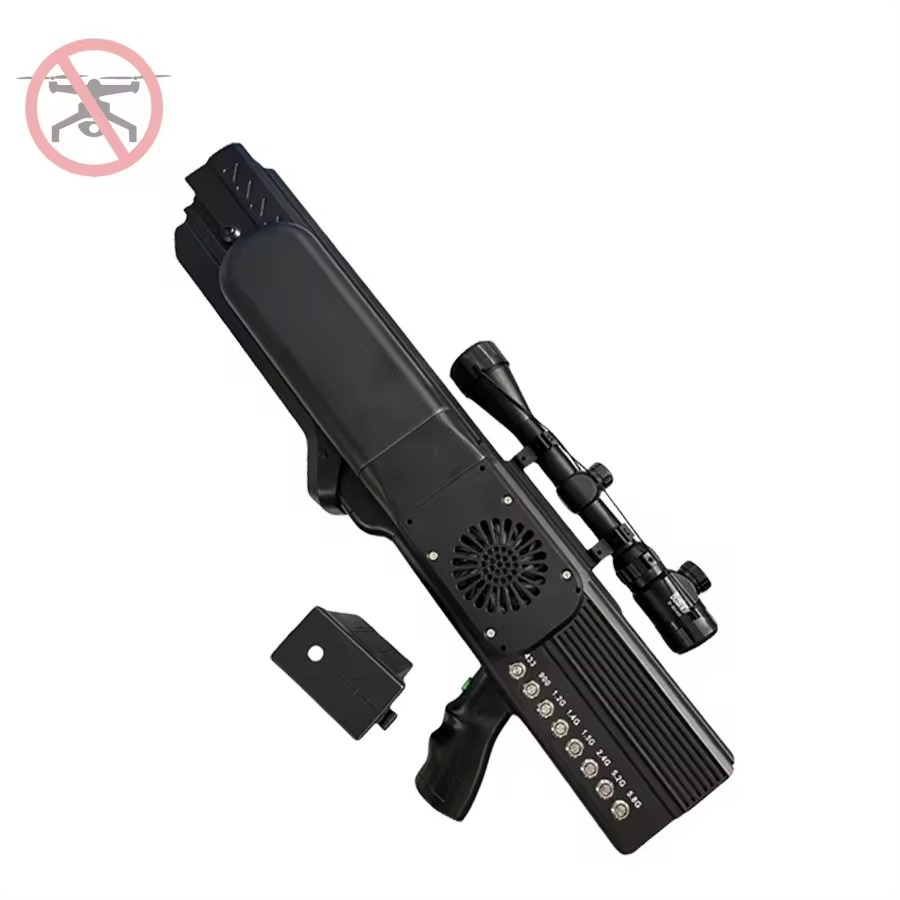

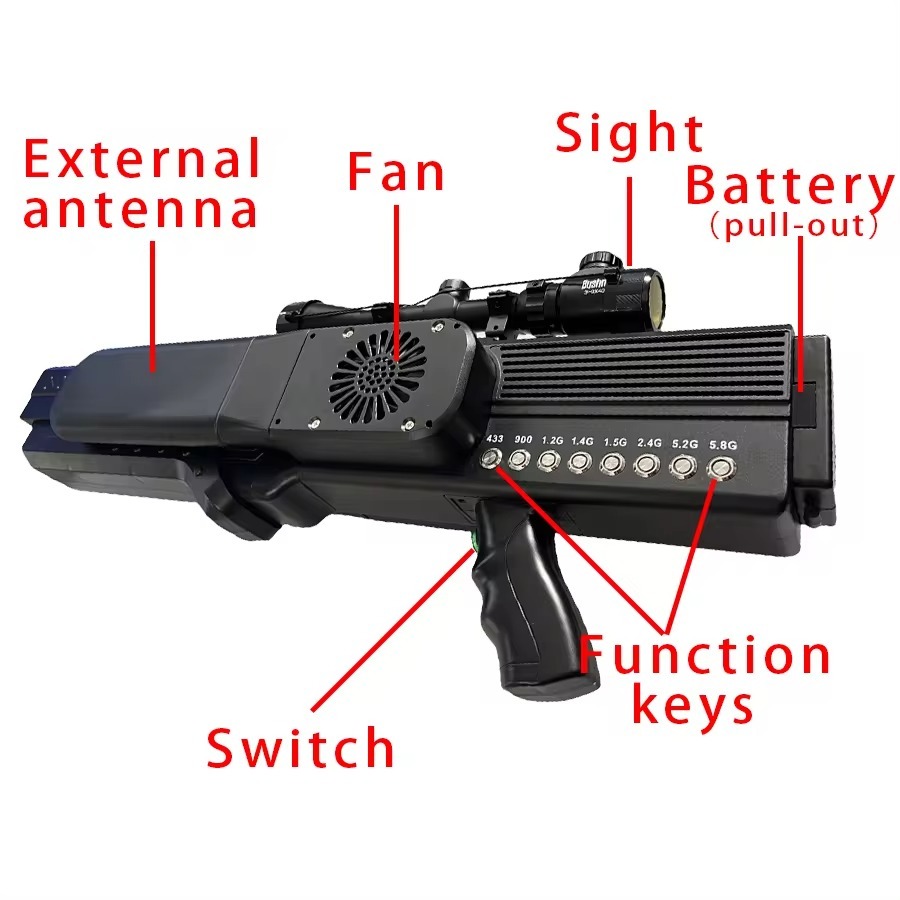

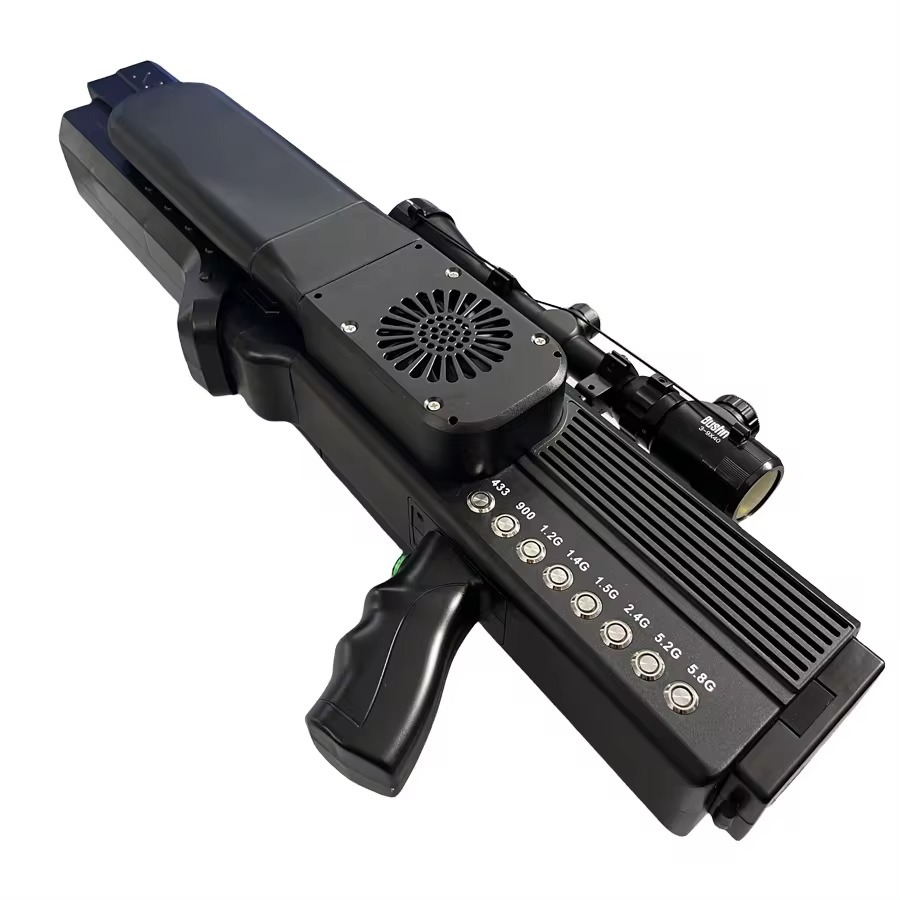

T,Real shot of the product
T,Device operating frequency
|
Output side
|
Operating frequency
|
Average output power
|
Channel output power
|
|
433M
|
433MHz
|
40dBm
|
20dBm/30KHz(min)
|
|
900M
|
860-930MHz
|
40dBm
|
20dBm/30KHz(min)
|
|
1.2G
|
1160-1220MHz
|
40dBm
|
20dBm/30KHz(min)
|
|
1.4G
|
1400-1450MHz
|
40dBm
|
20dBm/30KHz(min)
|
|
1.5G
|
1150-1620MHz
|
44±1dBm
|
20dBm/30KHz(min)
|
|
2.4G
|
2400-2500MHz
|
44±1dBm
|
20dBm/30KHz(min)
|
|
5.2G
|
5150-5350MHz
|
44±1dBm
|
20dBm/30KHz(min)
|
|
5.8G
|
5725-5850MHz
|
44±1dBm
|
20dBm/30KHz(min)
|
|
Battery: 7,500mA Power supply: 29.4V 2A
|
|
Weight of main unit: 6KgWeight with packaging: 11Kg
|
|
Dimensions (W x H x L): 72-30-15 (main unit 7.5 + fan 7.5) cm
|
|
Jamming distance: 1500-2500M (depending on the model of the drone and the distance between the drone and the flyer)
|
